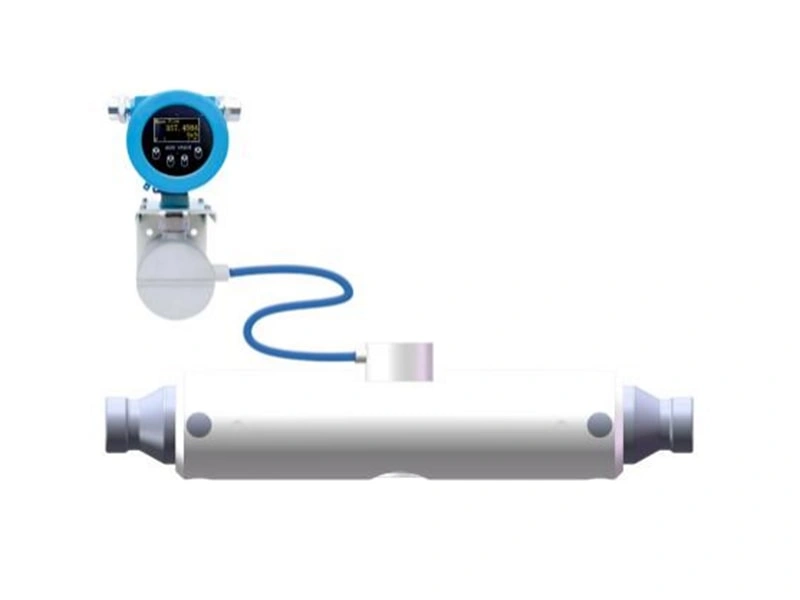

Ultra-high pressure cement slurry liquid density meter- KDM-HP

Ultra-high pressure cement slurry liquid density meter is used in oil drilling, cementing platform and other high pressure working conditions, with real-time density measurement accuracy at 0.02g/cm³. The joint is 2-inch 1502 hammer union with a maximum pressure resistance of 15000Psi

TECHNICAL PARAMETERS

Model	Accuracy(Customizable)	Repeatability	Measurement Range	Calibration Range
KDM-HP	±0.02g/cm³	±0.001g/cm³	(0.6-3.0) g/cm³	(0.8-2.5)g/cm³
Ultra-high pressure cement slurry liquid density meter: Applied to high pressure working conditions such as oil drilling and cementing platforms The joint is 2-inch 1502 hammer union with a maximum pressure resistance of 15000Psi

GENERAL TECHNICAL PARAMETERS

Temperature	Measurement Range		-40°C~+204°C
	Accuracy		±0.1℃
	Repeatability		0.05°C
Electrical parameters	Power supply		24VDC,220VAC
	Output Signal		RS-485,4-20mA,pulse
Environmental parameters	Operation Temperature		-40°C~+60°C
Explosion-Proof	Explosion-Proof Grade	Sensor	Exid llC T1~T6 Gb
		Transmitter	Ex d [ib] llC T6 Gb
Protection	Protection Grade	Sensor	IP66/IP67
		Transmitter	IP66/IP67
Standard	JJG 370-2019 online vibration tube liquid density meter calibration procedures

Ultra-high pressure cement slurry liquid density meter Installation Dimensions (Separate Mount)

Ultra-high pressure cement slurry liquid density meter Installation Dimensions (Separate Mount)

Unit: mm

Model	Specification	A (Customizable)	B	C
KDM-HP	2’1502	1050	590	255

Note: ①The flange standard follows GB/T 9124.1-2019, HG/T 20592-2009.

② Dimension A will change with the change of flange standard and pressure level, etc.
