TECHNICAL PARAMETERS
| Model | Accuracy(Customizable) | Repeatability | Measurement Range | Calibration Range |
|---|---|---|---|---|
| KDM-C | ±0.0001g/cm³ | ±0.00002g/cm³ | (0.2-2.0) g/cm³ | (0.65-1.2) g/cm³ |
| ±0.0002g/cm³ | ±0.000059/cm³ | (0.2-2.0) g/cm³ | (0.65-1.2)g/cm³ | |
| Flange Compatibility: DN25, DN32 | ||||
GENERAL TECHNICAL PARAMETERS
| Temperature | Measurement Range | -40°C~+204°C | |
| Accuracy | ±0.1℃ | ||
| Repeatability | 0.05°C | ||
| Electrical parameters | Power supply | 24VDC,220VAC | |
| Output Signal | RS-485,4-20mA,pulse | ||
| Environmental parameters | Operation Temperature | -40°C~+60°C | |
| Explosion-Proof | Explosion-Proof Grade | Sensor | Exid llC T1~T6 Gb |
| Transmitter | Ex d [ib] llC T6 Gb | ||
| Protection | Protection Grade | Sensor | IP66/IP67 |
| Transmitter | IP66/IP67 | ||
| Standard | JJG 370-2019 online vibration tube liquid density meter calibration procedures | ||

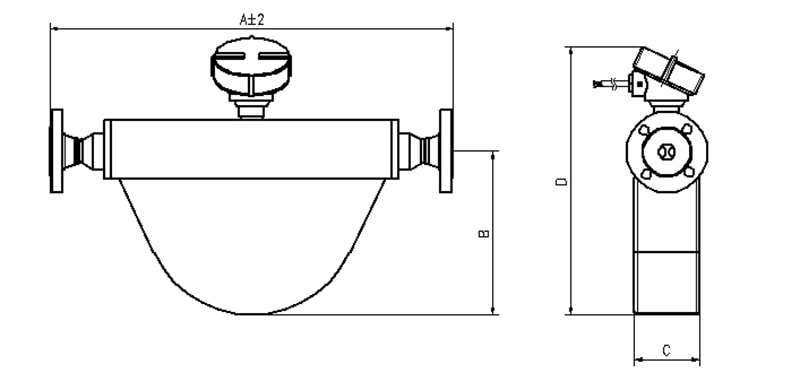

KDM-C Online Liquid Density Meter Installation Dimensions (Separate Mount)
Unit: mm
| Model | Specification | A (Customizable) | B | C | D |
|---|---|---|---|---|---|
| KDM-C | DN25 | 564±2 | 230 | 90 | 510 |

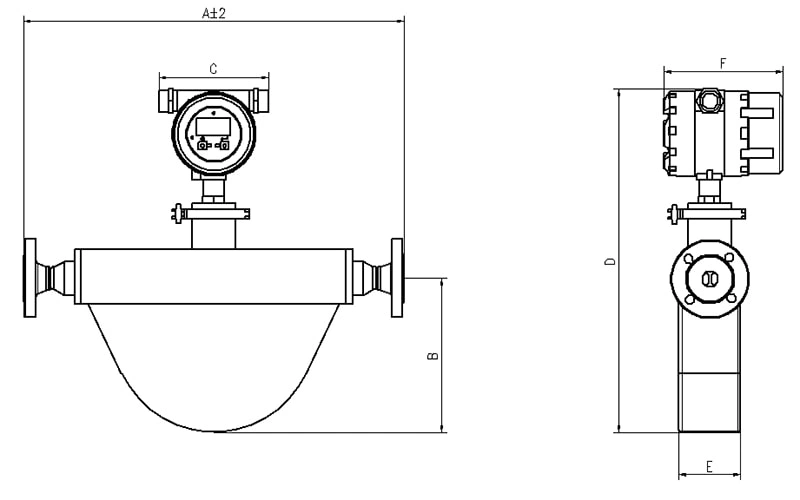

KDM-C Online Liquid Density Meter Installation Dimensions (Integral Mount)
Unit: mm
| Model | Specification | A (Customizable) | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| KDM-C | DN25 | 564±2 | 230 | 165 | 510 | 90 | 175 |
Note: ①The flange standard follows GB/T 9124.1-2019, HG/T 20592-2009.
② Dimension A will change with the change of flange standard and pressure level, etc.
