In the field of fluid measurement, installation orientation plays a critical role in ensuring accuracy and stability. The K Series Coriolis Mass Flow Sensor, developed by Qingdao Add Value Flow Metering Co., Ltd., offers three optimized installation configurations, allowing reliable measurement across a wide range of media—including liquids, gases, and mixed-phase fluids.

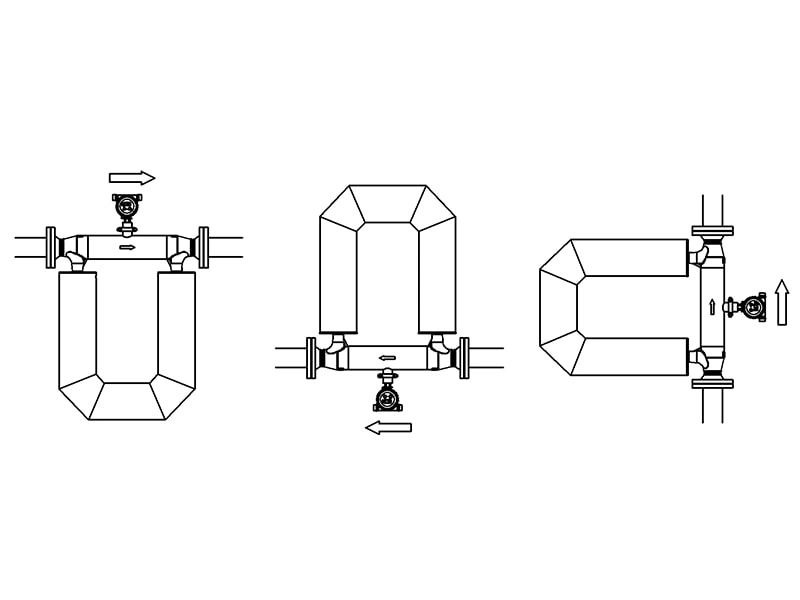

Horizontal Installation — Bottom Mounted (For Liquids)
The sensor is installed with the shell facing downward, effectively preventing air from accumulating inside the measuring tube. This setup ensures highly accurate mass flow measurement for liquid media.
Horizontal Installation — Top Mounted (For Gases)
In this configuration, the sensor shell faces upward to prevent condensate from collecting in the measurement tube—ideal for ensuring consistent gas flow readings.
Flag Installation — Side Mounted (For Liquids or Solid-Liquid Mixtures)
The sensor is mounted vertically to avoid particle buildup within the measuring tube. This makes it especially suitable for complex applications such as slurry or multiphase flow measurement.
With its flexible installation options and robust adaptability, the K Series sensor is widely applied in petrochemical, food and beverage, chemical, and pharmaceutical industries—delivering performance you can trust.
