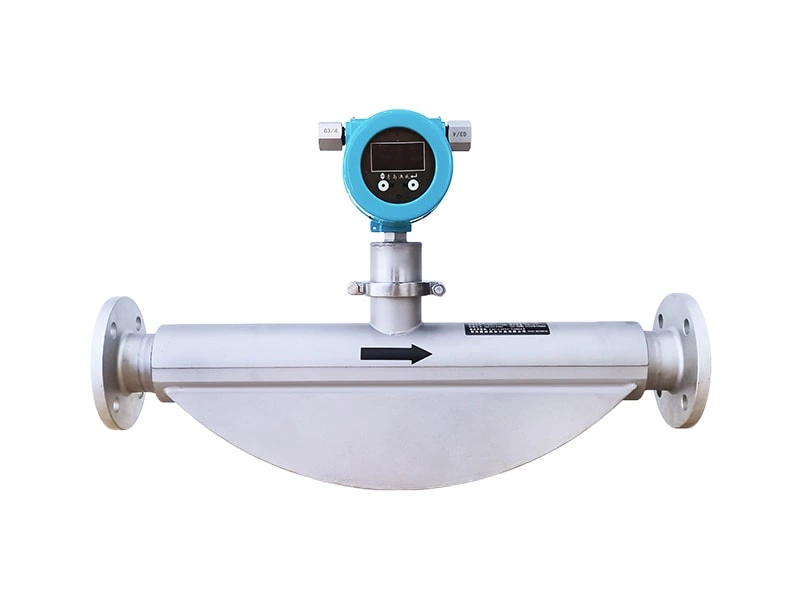

| Name of Flowmeter | V050 Coriolis Mass Flow Meters |
|---|---|
| Flange Compatibility | DN15/DN20/DN25 |
| Flow Range | 0.325-6.5 t/h |
| Grade of Accuracy | ± 0.1%; ±0.15%; ±0.2% |
| Turndown | 20:1 |
| Zero Stability | 0.33 kg/h |
| Density Range | 0.2 ~ 2.0 kg/cm³ |
| Density Error | ± 0.0005g/cm³ |
| Temperature Range | -240℃~ +350℃ |
| Temperature Error | ± 0.2℃ |
| Explosion-proof Grade | Sensor: Ex ib IIC T1- T6 Gb |
| Transmitter: Ex d [ib] IIC T6 Gb | |
| Protection Class | IP66/IP67 |
| IP66/IP67 |
V050 Series Mass Flow Meter Dimensions (Integral Type)
Unit: mm
| Model | Flanges Compatibility | A(Customizable) | B | C | D |
|---|---|---|---|---|---|
| V050 | DN15/DN20/DN25 | 414~418 | 81 | 42 | 378 |
V050 Series Mass Flow Meter Dimensions (Separate Type)
Unit: mm
| Model | Flanges Compatibility | A(Customizable) | B | C | D |
|---|---|---|---|---|---|
| V050 | DN15/DN20/DN25 | 414~418 | 81 | 42 | 220 |
