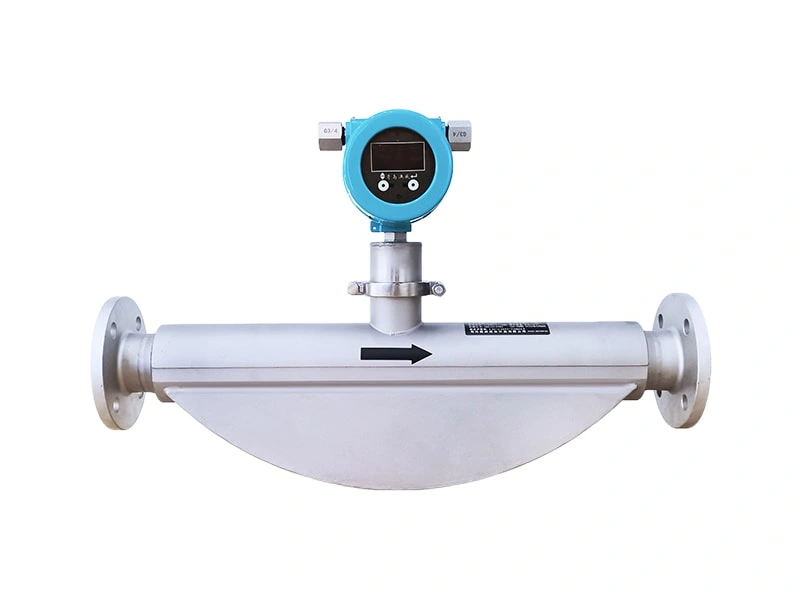

| Name of Flowmeter | V025 Coriolis Mass Flow Meters |
|---|---|
| Flange Compatibility | DN10DN15/DN20/DN25 |
| Flow Range | 0.1-2 t/h |
| Grade of Accuracy | ± 0.1%; ±0.15%; ±0.2% |
| Turndown | 20:1 |
| Zero Stability | 0.1 kg/h |
| Density Range | 0.2 ~ 2.0 kg/cm³ |
| Density Error | ± 0.0005g/cm³ |
| Temperature Range | -240℃~ +350℃ |
| Temperature Error | ± 0.2℃ |
| Explosion-proof Grade | Sensor: Ex ib IIC T1- T6 Gb |
| Transmitter: Ex d [ib] IIC T6 Gb | |
| Protection Class | IP66/IP67 |
| IP66/IP67 |
V025 Series Mass Flow Meter Dimensions (Integral Type)
Unit: mm
| Model | Flanges Compatibility | A(Customizable) | B | C | D |
|---|---|---|---|---|---|
| V025 | DN10/DN15/DN20/DN25 | 382~392 | 75 | 35 | 370 |
V025 Series Mass Flow Meter Dimensions (Separate Type)
Unit: mm
| Model | Flanges Compatibility | A(Customizable) | B | C | D |
|---|---|---|---|---|---|
| V025 | DN10/DN15/DN20/DN25 | 382~392 | 75 | 35 | 212 |
