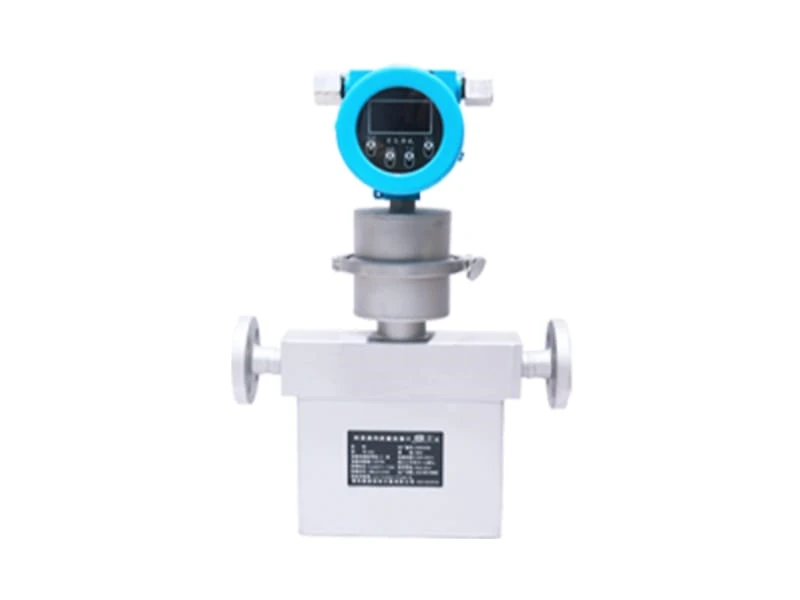

| Name of Flowmeter | K005 Coriolis Mass Flow Meters |
|---|---|
| Flange Compatibility | DN10/DN15 |
| Flow Range | 0.0006-0.028t/h |
| Grade of Accuracy | ±0.1%; ±0.15%; ±0.2% |
| Turndown | 20:1 |
| Zero Stability | 0.0010kg/h |
| Density Range | 0.2~2.0 kg/cm³ |
| Density Error | ± 0.0005g/cm³ |
| Temperature Range | -240℃ ~ +260℃ |
| Temperature Error | ± 0.2℃ |
| Explosion-proof Grade | Sensor: Ex ib IIC T1- T6 Gb |
| Transmitter: Ex d [ib] IIC T6 Gb | |
| Protection Class | IP66/IP67 |
| IP66/IP67 |

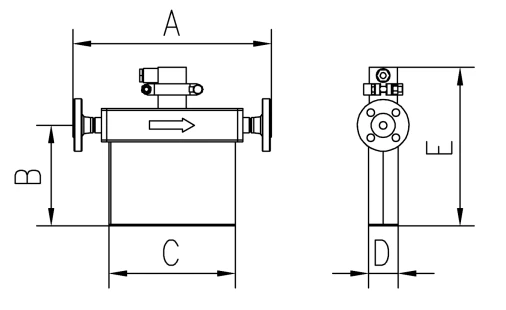

K005 Mass Flow Meter Dimensions (Separate Type)
Unit: mm
| Model | Flange Compatibility | A (Customizable) | B | C | D | E |
|---|---|---|---|---|---|---|
| K005 | DN10/ DN15 | 343~353 | 183 | 216 | 54 | 293 |
K005 Mass Flow Meter Dimensions (Integral Type)
Unit: mm
| Model | Flange Compatibility | A (Customizable) | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| K005 | DN10/ DN15 | 343~353 | 183 | 216 | 54 | 451 | 174 |
