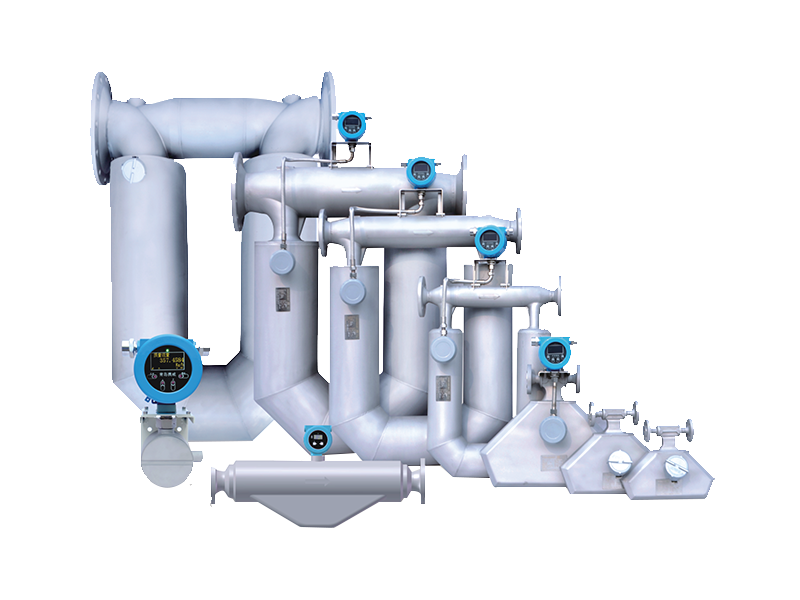

With compact size and digital algorithm, VMF Series Coriolis Mass Flowmeters are designed to deliver you the most accurate measurement in most challenging fluid conditions.

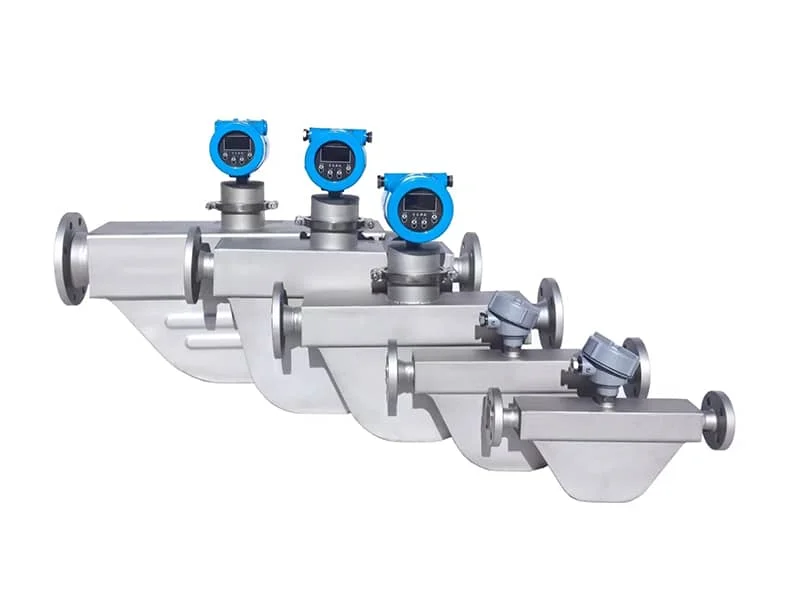

With compact size and digital algorithm, KV-series Coriolis Mass Flowmeters are designed to deliver you the most accurate measurement in most challenging fluid conditions.
With compact size and digital algorithm, KV-series Coriolis Mass Flowmeters are designed to deliver you the most accurate measurement in most challenging fluid conditions.
| Mass | |
|---|---|
| Flow Error | ±0.1%/±0.15%/±0.2%/±0.35%/±0.5% |
| Repeatability | ±0.025% |
| Density | |
| Density Error | ±0.0005g/cm³ |
| Repeatability | ±0.0001g/cm³ |
| Measuring Range | (0.2-2.0)g /cm³ |
| Electrical Parameters | ||
|---|---|---|
| Power Supply | 24VDC or 220VAC adaptive | |
| signal Way | 4-20mA, Pulse, RS485,HART Dual current or dual pulse isavailable upon request | |
| Ambient Parameters | ||
| Ambient Temperature | (-40-60)℃ | |
| Explosion-proof | ||
| Explosion-proof Grade | Sensor | Ex ib II CT1~T6 Gb |
| Transmitter | Ex d [ ib] lIC T6 Gb | |
| Protection | ||
| Protection Class | Sensor | IP66/IP67 |
| Transmitter | IP66/IP67 | |
| Material | ||
| Measuring Tube Material | S31603;S30403;S22053;HC276; | |
| Shell Material | S31603;S30403; | |
| Power Consumption | ||
| BPM Transmitter | Maximum Power Consumption ≤ 11w | |
· Optimal performance on liquid mass flow, volume flow and density measurement.
· continuous inline measurement coverage including hygienic, cryogenic, high pressure, and high temperature.
· Broadest range of communication and connectivity options and peripheral products meet all field and cost requirements.
· Intelligent DSP (Digital Signal Processing) induces least noise and offers best in turndown of 40:1.
· Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
· Complete range of line size: DN5-DN350
· Choose from models available in 316L Stainless Steel, C-22 nickel alloy and super-duplex materials
